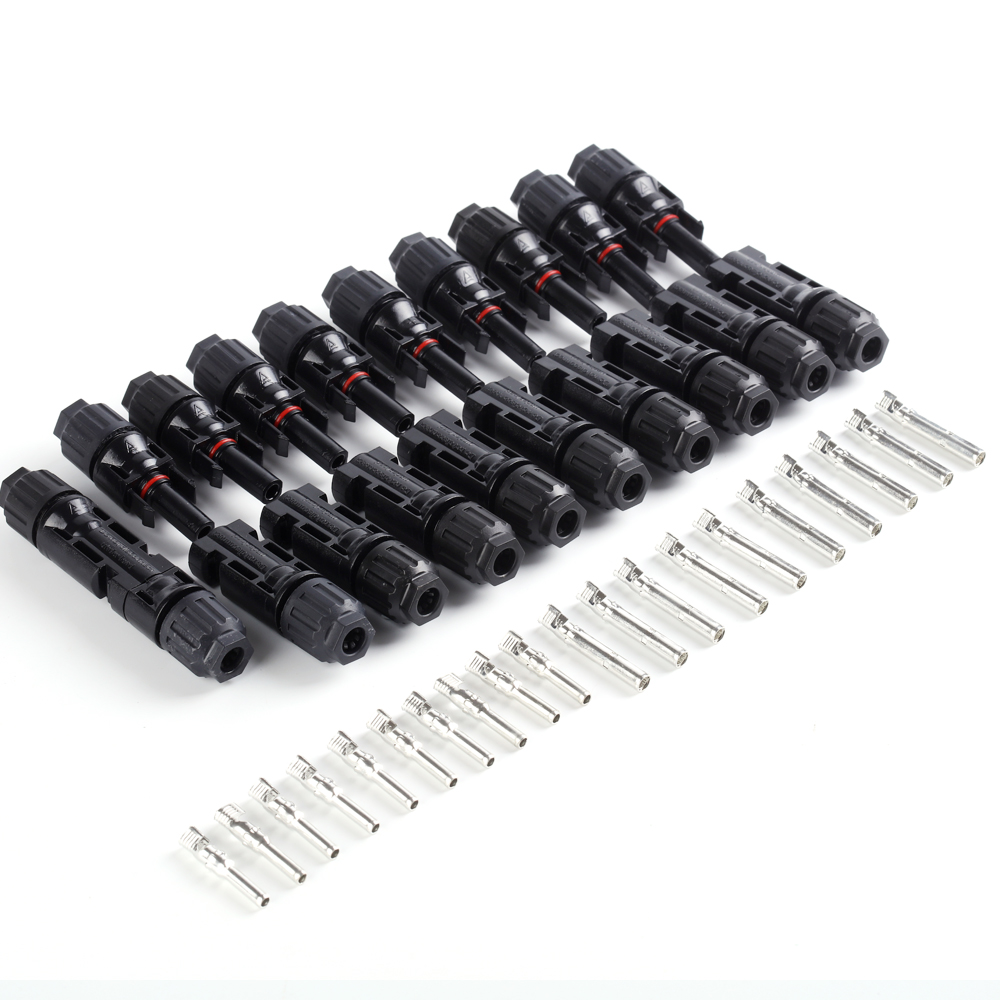

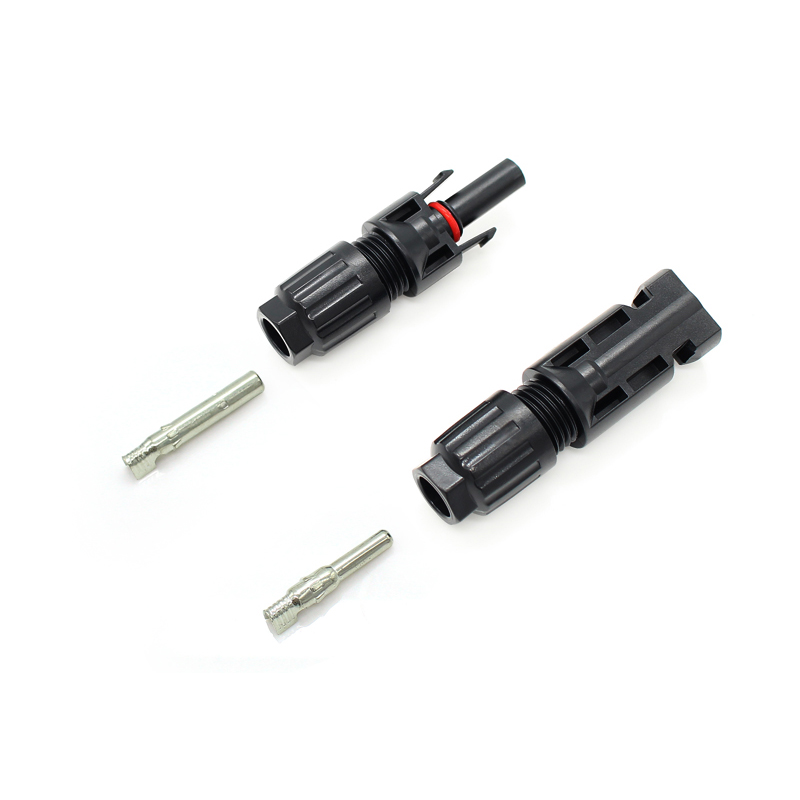

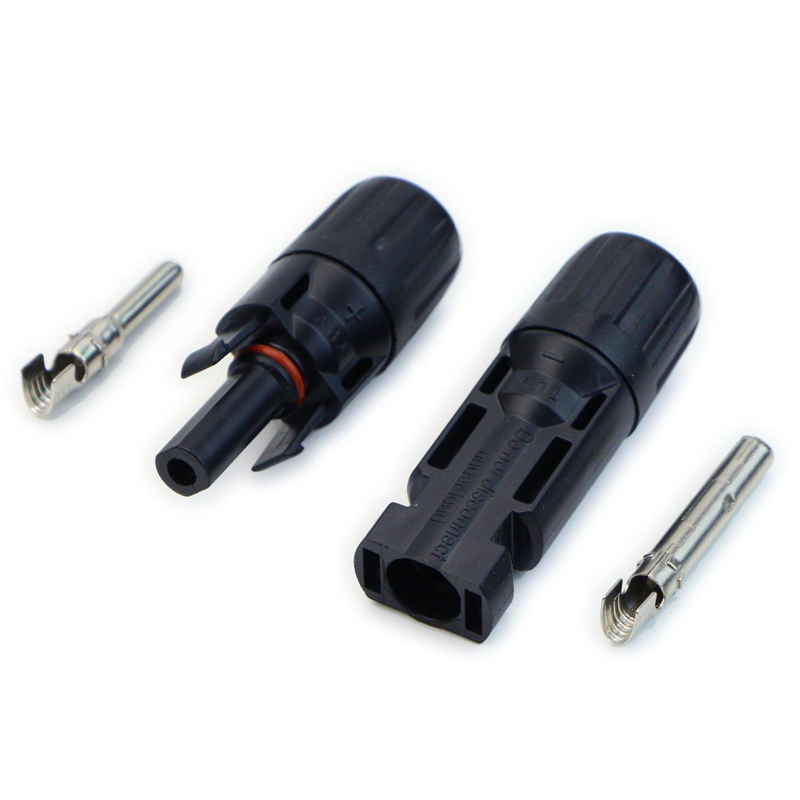

1000VDC Solar cable connnector
SOLAR CONNNECTOR
| Nominal voltage: 1000V DC | |||||
| Max current: 30A | |||||
| Contact type: cylindrical seat 4mm (socket with lamellar insert) | |||||
| Wire cross section: 2.5/4mm2 (14/12 AWG), or 4/6mm2 (12/10 AWG) | |||||
| Connector material: Tin-plated copper | |||||
| Contact resistance: <0.5mOhm | |||||
| Insulation material: PC/PPO | |||||
| Connection with cable: clamp (with suitable tools) | |||||
| Safety class: II | |||||
| Degree of protection: IP67 (in the connected state) | |||||
| Working temperature: (-40℃) - (+ 85℃), MAX +105℃ | |||||
| Flammability: resistance according to UL94-V0 |
DC 1000V，
2.5/4/6mm2 ,
PPO material,
Copper plug,
2.5/4/6mm2 ,
PPO material,
Copper plug,
