digital seconds Timer KG316S

KG316S weekly 32 Programs auto ON OFF seconds Timer

1. DATA SHEE

Timer range: 1second~168hrs

Mini interval: 1 second

Hysteresis: 2s/day (25°C)

Average error: 1s/24h, 25°C

Battery power: 3 year

Power consumption: 4.5 VA (MAX)

Temp.range: -25°C~+60°C

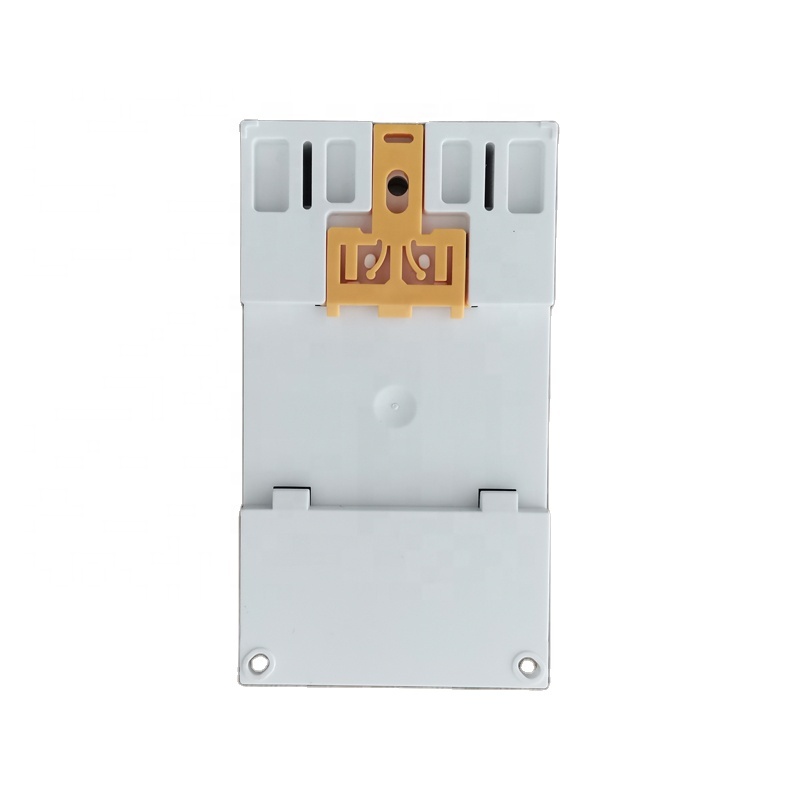

Mounting: DIN rail or M3 screws

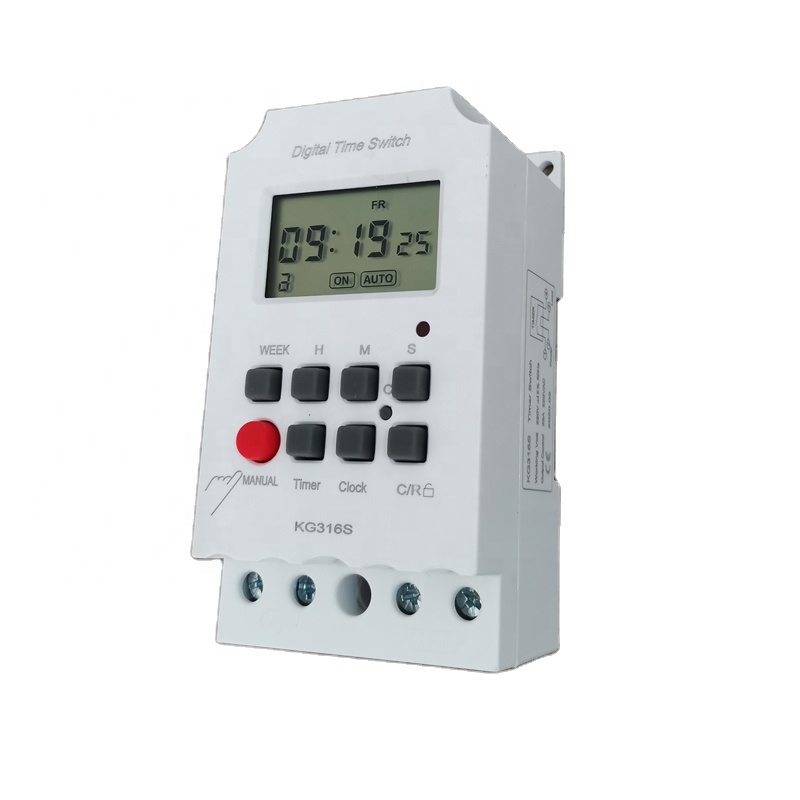

2. FUNCTION OF BUTTONS ON PANEL
1> TIMER: programs reviem or setting programs
2> MANUAL: to select "ON, AUTO or OFF"
3> CLOCK: to adjust current time or finish time setting
4> WEEK：to adjust day or week.
5> H： to adjust hour
6> M：to adjust minute
7> S : to adjust second
8> C : Restart timer and all settings are reset.
9> C/R: reset timer when settings or lock display
10> Led: to indicate ON/OFF working status when power connection.

5. TIMER SETTING OPERATION

Press TIMER

Setting 1 ON time (display 1 on)

Press H+/M+/S

Setting hours and minutes and seconds

Press WEEK

Select same everyday, different everyday, MO-FR, MO-SA, SA-SU, MO WE FR,TU TH SA, MO-WE, TH-SA.(If same everyday, no need to press this key)

Press TIMER

Setting 1 off time (display 1 off)

Press H+/M+/S

Setting hours and minutes and Seconds of off time

Press WEEK

select days as same as ON. If you want same set in every day, you need not press this key

Repeat step 2~6 Set

set other 2~32 ON/OFF time

Press C/R

if need to reset time of NO or OFF

Press clock

finish the time setting

press manual

set programs "ON, ON AUTO, OFF, OFF AUTO"

press C/R 4 times

lock the display, prevent anybody damage the setting. press 4 times again, unlock the display.

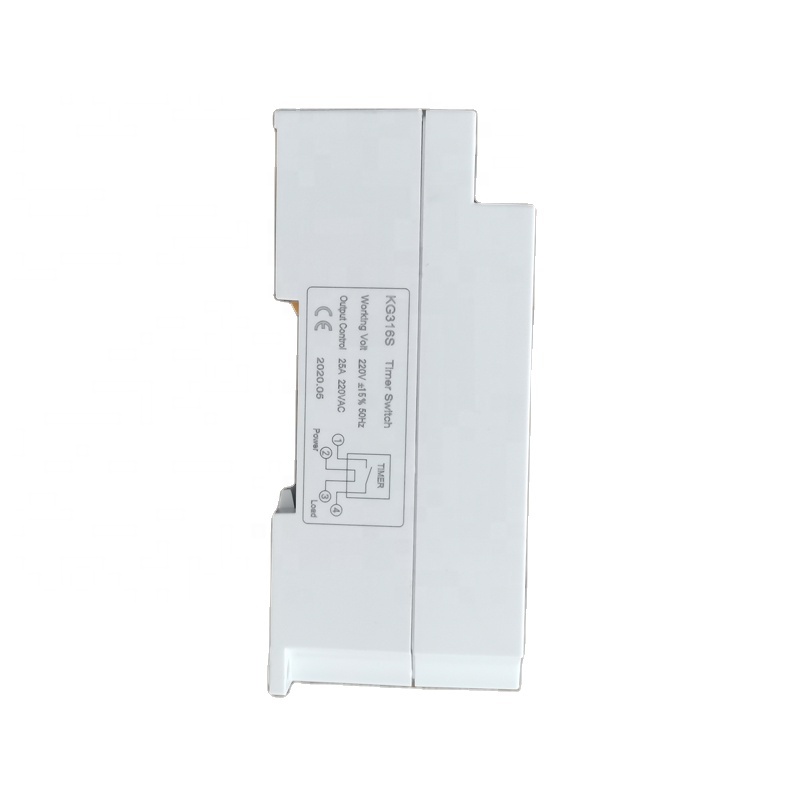

Voltage: 220V 50-60HZ
         customized: 110V, 12V,24V
         Capacity: 25A  250VAC
         Display: LCD
         Programs: 32 on/off each day or week
