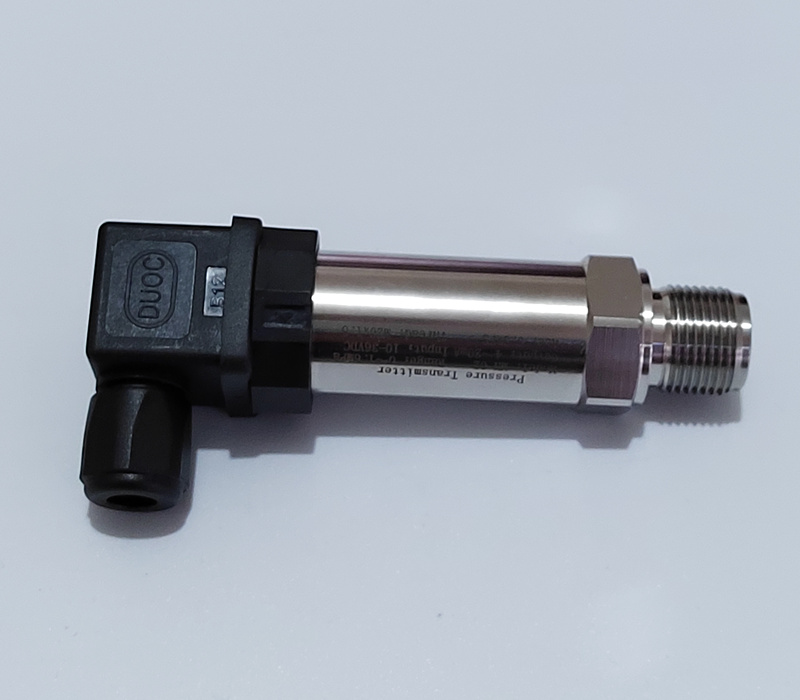

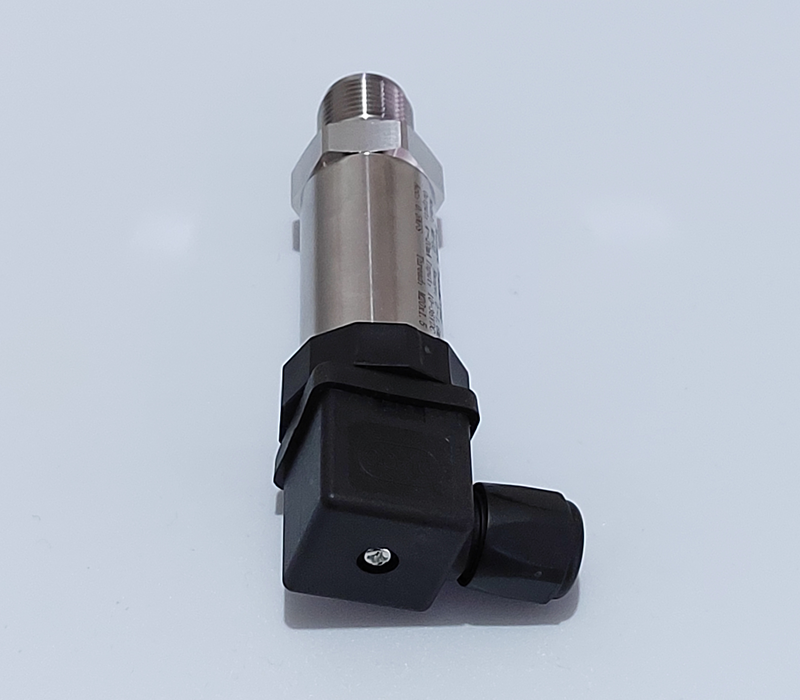

diffusion silicon pressure transmitter 4-20mA
diffusion silicon pressure transmitter 4-20mA:
Measuring range: 0~600Bar / 0-60Mpa
Accuracy: ±0.5%FS, ±0.2%FS
Output signal: 4-20mA, 0-5V, 0-10V
Supply voltage: 10~36VDC
Operating temperature: -40~105℃
Compensation temperature: -20~80℃
Operating current: ≤3mA
Long-term stability: ≤±0.2%FS/year
Temperature drift (zero&sensitivity): ≤±0.03%FS/℃
Response time: ≤3ms
Overload pressure: 150%FS
Cycle life: 500,000 times
Pressure medium: Non-corrosive liquid or gas
Pressure connection: G1/4, M20,Other pressure connection is on request
Electrical connection: Hirschman DIN43650C
Housing material: 304 Stainless Steel
Protection class: IP65
Explosion-proof class: ExiaⅡCT6
